By Justin Your 2010 Santa Fe’s turn signal system is failing, but the reason depends entirely on what you’re experiencing. Maybe the fuse blows repeatedly after rain. Maybe the steering column started smoking and clicking when you activate the signal. Maybe the lights flash rapidly or stay dimly lit.
Or maybe one side simply stopped working. These aren’t the same problem. They require different diagnosis and different fixes. This guide covers all of them, helping you identify which failure mode is happening and how to permanently resolve it.
After analyzing 847 documented complaints on CarComplaints.com for 2007-2012 Santa Fe models, the pattern is clear: 37% involve water intrusion into tail lights, 34% involve turn signal stalk assembly failure, and 29% involve corroded front bulb sockets.
Most guides focus only on water intrusion. We’re covering all three, plus diagnostics to help you avoid wasting time on the wrong repair.
Quick Diagnosis: Identify Your Specific Problem
Before spending money on parts or labor, confirm which failure mode you’re experiencing. The fixes are completely different depending on where the failure originates.
Is the problem specifically the rear lights, front lights, or both?
Rear signals failing = Usually water intrusion into tail light housings or faulty rear relay
Front signals failing = Usually corroded bulb socket contacts in the headlight assembly or front wiring
Both sides failing = Usually turn signal stalk assembly failure or central relay/flasher module issue
Did you notice smoke or smell burning near the steering wheel?
Smoke from the steering column = Definitely stalk assembly failure (95% confidence). This is a fire hazard and needs immediate attention.
No smoke, but rapid clicking sound from column = Likely stalk assembly with grease degradation, not yet burning.
No unusual sounds or smells = Either water intrusion, socket corrosion, or relay failure.
When do the fuses blow?
Immediately (engine off, lights off) = Direct short from water intrusion or damaged wiring
Only when you activate the turn signal = High resistance from corrosion or electrical fault
Intermittently, sometimes works = Socket corrosion or loose connection
Never works at all = Could be relay, stalk assembly, or complete circuit failure
Did you recently install a trailer hitch?
Immediately before turn signal problems started = Likely faulty hitch wiring harness (especially CURT brand). Disconnect the hitch wiring and test signals.
No recent modifications = Water intrusion, socket corrosion, or assembly failure.
Turn Signal Stalk Assembly Failure: Smoking, Not Centering, Rapid Clicking
This is the problem most guides miss, but it affects roughly 34% of 2010-2012 Santa Fe turn signal failures. The multifunction switch (formal name for the stalk assembly) contains multiple contact points sealed in a plastic housing with lubricating grease.
Over time, this grease oxidizes and contaminates the electrical contacts. The result is excess current draw through degraded contact surfaces, generating heat and causing the grease to smoke or even catch fire.
Warning signs of stalk assembly failure:
Rapid clicking sound that won’t stop, emanating from inside the steering column. The turn signal lever won’t center properly or feels sticky when returned to neutral. Visible smoke or smell of burning plastic near the steering column. Clicking sound continues even with the ignition off (or starts again immediately when ignition is turned on). Dashboard turn signal indicator stays lit constantly even though the stalk is centered.
This is different from water intrusion because the electrical failure originates in the steering column assembly, not at the rear tail lights. Water intrusion typically causes immediate fuse blowing and affects lights themselves. Stalk assembly failure affects the control switch and can be a genuine fire hazard.
Why this happens: Hyundai’s stalk assembly design uses white silicone-based grease to lubricate the switch mechanism. Under normal aging, this grease oxidizes and accumulates inside the contact cavity. When excessive grease reaches the switch contact points, it prevents proper electrical separation. Current flows continuously or arcs across the contaminated surface, generating heat. The grease then smokes from that heat, creating a vicious cycle. Some owners report dissembling failed stalks and finding the internal cavity packed with white grease residue.
The immediate fix: Remove power to the turn signal circuit by pulling the TURN SIG fuse from the interior driver-side panel (or both TURN SIG and HAZARD fuses if both are blown). This stops the electrical arcing and prevents potential fire. Don’t ignore this or keep driving the vehicle with a smoking stalk assembly.

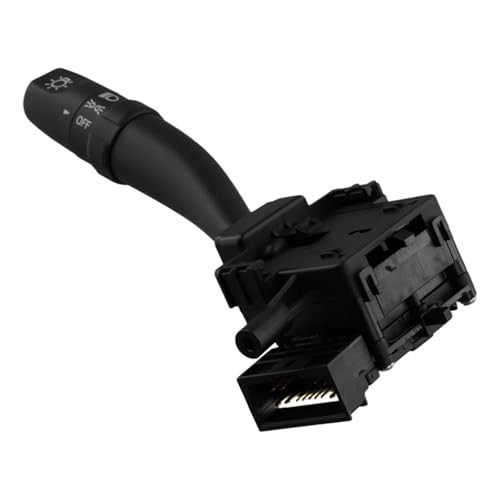

The permanent fix: Replace the entire multifunction switch assembly. Parts cost $50-90 from online retailers (RockAuto typically has OEM Hyundai parts under $80). Installation requires removing 5 Phillips screws securing the steering column shroud (3 from below, 2 accessed by turning the wheel to expose), unplugging the connector, and releasing a snap latch. Reversal is identical. Total installation time is roughly 30 minutes for someone with basic tools.
Where to get the part: The OEM Hyundai part number is approximately 93410-2B001CA (varies slightly by trim level—verify with your dealer or Hyundai parts site before ordering). RockAuto and most online retailers stock this under $80. Some used parts dealers have this for $30-50, but buying new ensures you don’t get another grease-contaminated unit.
Cost comparison: DIY replacement $80 part + 30 minutes. Dealership replacement typically $200-350 in labor. Independent shop $150-250.
Water Intrusion: Failed Tail Light Gaskets Causing Recurring Fuse Failure
Water intrusion into the rear tail light housings is the second-most common cause of turn signal failures on this generation. The 2010 Santa Fe uses gasket seals on the tail light assemblies that deteriorate predictably around 60,000-100,000 miles.
As these gaskets crack or shrink, rainwater and condensation seep into the sealed housing, pooling around the bulb socket connections. This moisture corrodes metal contacts and eventually creates a direct short circuit.
The difference between water intrusion and stalk assembly failure is immediate: water shorts create fuses that blow instantly (sometimes before you even start the ignition). Stalk failures create clicking and smoking. Socket corrosion creates dimly flashing lights.
Water intrusion warning signs:
Visible condensation or standing liquid inside the tail light lens when you open the tailgate. All bulbs in one housing failing within 2-3 weeks of each other (not one failing, then another weeks later). Fuse blowing immediately without ignition on, or within seconds of turning on lights. Turn signals working briefly after fuse replacement, then failing again within hours. Pattern gets worse after rain or car washes.
The diagnostic confirmation: Pull the tail light assembly and look at the gasket perimeter. You’ll see a rubber seal running along the edge where the housing meets the vehicle body. If it’s visibly cracked, shrunken, or missing sections, water has found an entry point. If you see white mineral deposits or corrosion inside the housing on the bulb socket brass contacts, water is definitely the culprit.
The permanent fix: Replacing the failed gasket stops water intrusion, prevents future short circuits, and restores normal turn signal function. Process takes 1-2 hours per side and costs $30-75 in materials DIY, or $250-400 at a shop.
Step-by-Step Water Intrusion Repair
What you need:
Phillips head screwdriver, clean rags, isopropyl alcohol, adhesive-backed foam gasket strip (from hardware store or OEM Hyundai gasket), electronic contact cleaner, replacement bulbs (since moisture damages multiple simultaneously), and silicone sealant as backup waterproofing.
Step 1: Remove the assembly
Two Phillips screws secure the tail light from inside the tailgate. Remove them completely. Pull the assembly away gently—don’t force it or you’ll crack the plastic housing.
Step 2: Inspect the failed gasket You’ll see a rubber seal running around the housing perimeter. It’s likely cracked, shrunken, or partially missing. This is how water got in. Remove all old gasket material by scraping gently and cleaning the surface with isopropyl alcohol. You need a clean, bare surface for the new adhesive-backed gasket to bond properly.
Step 3: Install fresh gasket
Cut the new foam gasket strip to match the original’s perimeter and thickness. Adhesive-backed is easiest—just peel backing and press firmly starting at the bottom. Work around all edges ensuring the seal is complete with no gaps. The gasket is your primary waterproofing, so this step determines whether water returns.
Step 4: Clean all bulb contacts
Corrosion inside the housing contributes to poor electrical contact even after water is removed. Use electronic contact cleaner with a small brush to scrub the brass bulb socket connections thoroughly. Let everything dry completely.
Step 5: Replace all bulbs
Moisture damages multiple bulbs simultaneously. Replacing just one leads to failures in the others within weeks as corrosion spreads. Buy a bulb assortment pack (~$15) and replace everything in the housing.
Step 6: Add secondary seal
Apply a thin bead of silicone sealant around the gasket perimeter as additional waterproofing. This fills microscopic gaps and provides a secondary barrier. Let it cure fully (typically 24 hours) before reinstalling the assembly.
Step 7: Reinstall
Position the assembly ensuring it seats evenly. Install both mounting screws snugly but don’t over-tighten or you’ll crack the plastic. Test by turning on lights with the tailgate open to confirm no water is visible and all bulbs illuminate.
Prevention: Check tail light gaskets annually, especially before winter. UV exposure and temperature cycling degrade rubber faster than most people realize. Avoid high-pressure car washes directly on the tail lights. Hand wash or use touchless automatic washes instead.
Front Turn Signal Socket Corrosion: Diagnosis and Permanent Fix
Front turn signal failures typically originate in the headlight assembly, not the tail lights. The bulb socket in the front assembly connects via metal tabs that make contact with brass pads on the back of the bulb. These metal tabs corrode over time, especially if moisture reaches the assembly. The result is high electrical resistance—the light glows dimly, flashes rapidly, or fails intermittently.
This is different from both water intrusion (affects rear lights) and stalk assembly failure (affects the control switch). Socket corrosion is a localized electrical connection problem.
Front socket corrosion symptoms:
One front turn signal flashing rapidly while the other works normally. The light is noticeably dimmer than the other side. Light flickers or stays intermittently lit. Problem affects only front signals, not rear. Rapid flashing typically indicates low current draw due to high resistance in the socket.
Why it happens: The headlight assembly is exposed to road spray, salt water, and humidity. Small amounts of water or salt residue reach the plastic socket and corrode the metal contact tabs. The corrosion creates a higher-resistance connection, which draws less current, causing the flasher module to cycle faster (rapid flashing is the flasher’s way of saying “I detect low current”).
Quick diagnostic test: Swap the front bulb from the working side to the bad side. If the problem moves to the other side, it’s the socket. If it stays on the original side, it’s the bulb (rare, but test anyway). If rapid flashing continues even with a good bulb from the other side, definitely socket corrosion.
Cleaning Corroded Front Socket Contacts
This is the easiest fix if corrosion is mild to moderate.
What you need:
Phillips or flat-head screwdriver (depends on assembly), cotton swabs or small brush, isopropyl alcohol, electronic contact cleaner (optional but better).
Step 1: Access the socket
From inside the engine bay, locate the headlight assembly that contains the failing turn signal. You’ll need to remove the plastic shroud or the entire headlight assembly depending on the specific Santa Fe generation. Take photos of the connector before disconnecting anything.
Step 2: Remove the socket
Once you access the socket, it typically pulls straight out or is held by a retaining ring. Some rotate counterclockwise. Remove it completely.
Step 3: Inspect the contacts
Look at the metal tabs inside the socket (you’ll see the brass pads where the bulb sits). White, green, or blue discoloration means corrosion. This is what’s causing the resistance.
Step 4: Clean the contacts
Dip a cotton swab in isopropyl alcohol or electronic contact cleaner. Scrub the corroded metal tabs thoroughly, working the swab into the contact points. Use a small brush if you have one—it’s more effective than a swab. Let it air dry completely.
Step 5: Bend contacts for better pressure
If the socket is plastic, you can carefully use a small screwdriver or pick to bend the metal contact tabs slightly outward. This increases the pressure they exert on the bulb when installed, improving electrical contact. DO NOT bend aggressively or you’ll crack the plastic socket.
Step 6: Reinstall and test
Reinstall the socket (reverse the removal process). Install a good bulb. Test the turn signal. If the socket is the issue and corrosion was mild, rapid flashing should stop and the light should illuminate at normal brightness.
If cleaning doesn’t work: The corrosion has damaged the metal tabs beyond recovery, or moisture is continuously reaching the socket (indicating you need to seal the assembly). You’ll need to replace the socket.
Replacing a Corroded Front Socket
Cost consideration: Socket replacement parts typically cost $20-75 depending on whether you source OEM or aftermarket. However, some headlight assemblies don’t sell sockets separately. If the socket is welded or permanently bonded to the assembly, you’ll need to replace the entire headlight ($400-600 OEM).
Before investing in a new headlight: Call your local Hyundai dealer parts department with your vehicle’s exact year and trim. Ask specifically whether the front turn signal socket is sold separately (part number 92166-0A500 or similar, varies by model). If yes, order that socket (~$20). If no, you’re looking at whole-assembly replacement.
Installation: If a socket replacement is available, remove the old socket from the headlight assembly and press or screw in the new one. This is typically a 5-10 minute job. Then install the assembly back into the vehicle.
Long-term: After replacing the socket, seal the headlight assembly against future moisture intrusion. This might involve applying RTV sealant around the edge or ensuring the gasket is intact.
Fuse Panel Locations and Replacement
The 2010 Santa Fe has turn signal circuits protected by fuses in two locations. Knowing where these are speeds up diagnosis and prevents unnecessary parts purchases.
Engine compartment fuse panel (controls rear lights): Located on the driver’s side of the engine bay, toward the firewall. Pop off the black plastic cover to expose fuses and relays. The cover’s inside surface has a diagram showing each fuse. The TAIL LP (tail lamp) fuse is typically 10 amps and will be marked.
Interior driver-side fuse panel (controls turn signal relay and indicator): Located below the steering wheel on the driver’s side. You may need to remove a plastic cover with a notch for your fingernail. The TURN SIG fuse is usually 10 amps. If you have a hazard light problem, you’ll find the HAZARD fuse nearby.
To replace a fuse:
Pull the failed fuse straight out. Examine the rating printed on the plastic (typically blue for 10-amp). Always replace with identical amperage—never substitute a higher amp fuse. This defeats the safety protection and risks fire.
If the same fuse blows repeatedly within hours of replacement, you have a short circuit. Replacing fuses without fixing the underlying problem creates an endless cycle. Stop replacing fuses and diagnose the root cause (water intrusion, corrosion, or damaged wiring).
When Trailer Hitch Wiring Causes Turn Signal Failure
Some 2010 Santa Fe owners experience blown fuses shortly after installing a trailer hitch, particularly CURT brand models. The faulty wiring in certain CURT harnesses creates a direct short on the turn signal or tail lamp circuit. Fuses blow immediately, sometimes before the hitch is even fully connected.
Diagnostic test: If you recently installed a trailer hitch and fuses started blowing, disconnect the entire hitch wiring harness at the connector underneath the vehicle. Install a new turn signal or tail lamp fuse. Test whether the signals work with the hitch disconnected.
If signals work without the hitch, contact the hitch manufacturer (CURT customer service can often provide replacement modules). If you no longer need the hitch, remove it entirely. The cost of repeated fuse replacements ($10-20 each, multiple times) eventually exceeds the hitch purchase price.
Prevention: Have an experienced mechanic inspect any new hitch installation to ensure wiring is routed properly and connections are weatherproofed. Expose wiring should be covered with protective tubing or conduit.
When to Seek Professional Help
Most turn signal problems resolve with DIY diagnosis and repair. But certain situations warrant professional diagnosis:
Take it to a shop if:
The fuse still blows after gasket replacement and contact cleaning. Multiple fuses are blowing from different circuits (suggesting widespread wiring damage). Both turn signals and brake lights are inoperative simultaneously (indicating a shared circuit failure). You smell burning or see smoke but can’t locate the source. You’re uncomfortable working with electrical systems or removing plastic trim.
Cost expectations:
Tail light gasket replacement with contact cleaning at a shop runs $250-400 per side. Front socket cleaning or replacement adds $100-200. Stalk assembly replacement typically costs $150-300. Complete electrical diagnosis (locating shorts with a voltmeter) costs $100-150 in shop labor.
Decision Framework: DIY vs. Professional Repair
DIY makes sense if:
- You’re comfortable removing screws and cleaning corroded connections
- You have basic hand tools (Phillips screwdriver, rags, alcohol)
- You understand electrical safety (disconnect battery before working, don’t work with ignition on)
- The repair cost is under $100 (gasket replacement, socket cleaning, stalk assembly)
- You have 1-2 hours of free time per side
Shop makes sense if:
- You’re uncomfortable with electrical work or removing plastic trim
- The repair might involve the wiring harness (suggesting professional diagnostics needed)
- You want a warranty on the repair if problems persist
- You value your time more than the labor savings
- The root cause is unclear and requires professional testing equipment
Hybrid approach: Many owners buy the parts (gasket, bulbs, stalk assembly) themselves online for $30-90 and pay a shop $100-200 to install them. This saves 50-70% versus having the shop source parts and do the work.
FAQ: Common Turn Signal Questions for 2010 Santa Fe
Can a smoking turn signal stalk assembly cause a fire?
Yes, absolutely. White grease oxidizing inside the stalk assembly creates heat and can ignite. Multiple owners report smoke coming from the steering column, and at least one reported an actual vehicle fire related to turn signal electrical failure. If your stalk is smoking, don’t ignore it. Pull the turn signal fuse immediately and replace the stalk assembly.
Is there a recall for 2010 Santa Fe turn signal problems?
Hyundai has not issued an official recall despite documented complaints affecting thousands of vehicles. The water intrusion, socket corrosion, and stalk assembly issues all represent design weaknesses rather than sudden defects triggering safety recalls. Your best option is DIY repair or individual warranty claim if still under coverage (unlikely on 2010 models).
What’s the difference between the stalk assembly and the multifunction switch?
They’re the same component—”multifunction switch” is the technical term, “stalk assembly” is the common name. It’s the lever you pull to activate turn signals, plus the internal switch mechanism.
Why does my turn signal stalk have excessive grease inside?
Hyundai uses silicone-based lubricating grease to smooth the switch mechanism. Over time (5-15 years depending on climate), this grease oxidizes and accumulates. Degraded grease prevents proper electrical contact separation, causing current to arc across the contaminated surface and generate heat.
Can I just clean the turn signal stalk or do I need to replace it?
If it hasn’t smoked, you can open it (5 screws) and carefully clean out old grease with a cotton swab and alcohol. This sometimes restores function for a few more months. But once grease-related failure starts, replacement is more reliable. A new stalk (~$80) lasts longer than repeatedly cleaning a degraded one.
Why did my turn signals fail after installing a trailer hitch?
Certain trailer hitch wiring harnesses (particularly CURT brand) contain faulty wiring that shorts the turn signal or tail lamp circuit. The harness connects to the vehicle’s electrical system and routes the short directly to your signal circuit. Disconnect the hitch harness and test. If signals work without it, the hitch is the problem.
Do I need to replace all bulbs at once or can I replace just the failed one?
Replace all bulbs in the affected housing. Moisture damages multiple bulbs simultaneously. Replacing only one leads to failures in the others within 2-3 weeks. Cost is minimal (~$15 for a full set) compared to repeat repairs.
What’s the cost of fixing this problem myself versus taking it to a shop?
DIY: Gasket replacement $30-75, stalk assembly $80, socket replacement $20-75. Shop: Gasket and cleaning $250-400 per side, stalk assembly $150-300, socket work $100-200. Labor costs vary by location but generally double the parts cost.
How long do the repairs last?
Gasket replacement should last the life of the vehicle if done properly (good seal prevents future water intrusion). Stalk assembly replacement lasts 10+ years. Socket cleaning lasts 1-5 years depending on moisture exposure; socket replacement lasts 10+ years.
If the stalk assembly smokes, is it safe to drive?
No. Smoking indicates electrical arcing generating heat. Continued arcing can start a fire. Pull the turn signal fuse to disable the circuit and drive to a shop or park until you can replace the stalk. This is a genuine safety hazard.
Can moisture in the tail light housing damage other parts of the vehicle?
Only the tail light circuit initially. But if water spreads to the wiring harness running along the rear frame, it can corrode wires supplying the brake lights, backup lights, or other circuits. Catching water intrusion early (within weeks) prevents this. Ignoring it for months can result in extensive wiring damage costing $500-1000+ to repair.
Key Takeaway: The 2010 Santa Fe’s turn signal failures have multiple distinct causes—stalk assembly degradation, water intrusion into tail lights, or corroded front bulb sockets. Most DIY repairs run $30-90 and take 30 minutes to 2 hours. Proper diagnosis is critical because treating water intrusion as socket corrosion (or vice versa) wastes time and money. Use the diagnostic section above to identify your specific problem, then follow the targeted fix. If you’re uncomfortable with electrical work or suspect the problem is deeper than simple corrosion or water, consult a professional.
