How Do Brake Shoes Work

Brake shoes work by using friction to slow down a vehicle when you press the brake pedal.

Brake shoes are typically found in drum brake systems, where they press against the inner surface of the brake drum to create the necessary friction for braking.

When the brake pedal is pressed, hydraulic pressure is applied to the wheel cylinders, causing the brake shoes to make contact with the drum and slow down the vehicle.

Over time, brake shoes can wear out and may need to be replaced to maintain the braking efficiency and safety of the vehicle.

The Basics of Drum Brakes

understanding drum brake systems

At the heart of every drum brake system, you'll find the brake shoes, vital components that guarantee your vehicle stops when you need it to. These shoes are the workhorses that apply friction to the drum's inner surface, allowing your car to slow down or come to a complete stop. It's a simple yet effective mechanism that's been around for decades, proving its reliability and efficiency in countless vehicles.

You're probably wondering how they fit into the overall braking process. Well, brake shoes are curved pieces of metal lined with a high-friction material. When you press the brake pedal, these shoes are forced outward, pressing against the spinning drum that's attached to the wheel. This contact generates the friction needed to slow down the wheel's rotation, thereby reducing your vehicle's speed.

It's vital to keep in mind that the effectiveness of your drum brakes relies heavily on the condition of the brake shoes. Worn-out shoes can greatly reduce braking efficiency, making it essential to check them regularly and replace them as needed. By grasping the basics of how brake shoes work within the drum brake system, you're better equipped to maintain your vehicle's safety and performance.

Activating Brake Shoes

Understanding how brake shoes come into action is significant for maintaining your vehicle's braking efficiency. When you press the brake pedal, you're not just stopping your car; you're engaging a complex system designed to keep you safe. Here's what happens succinctly:

  1. You press the brake pedal. This is the initial step in a chain reaction that guarantees your safety on the road.
  2. Hydraulic pressure is generated. This pressure is what moves the brake shoes into action. It's like your car's way of flexing its muscles to protect you.
  3. Brake shoes press against the drum. This creates friction, the hero of the day, slowing down your car and allowing you to stop safely.
  4. Heat is produced. It's the byproduct of your brake shoes working hard to keep you and your loved ones safe.

This sequence ensures that every time you press that pedal, you're activating a safety mechanism designed with precision. It's a reminder of the invisible forces at work, keeping you safe on your journeys.

Composition of Brake Shoes

composition of brake materials

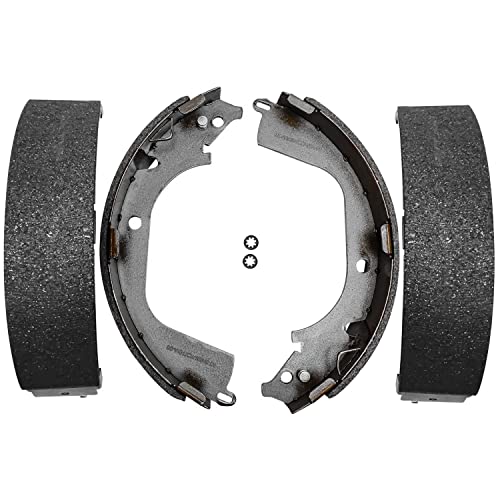

Brake shoes, the important heroes of your vehicle's braking system, consist of a metal backing plate with friction material bonded or riveted onto it. These components are vital for your car's ability to stop effectively. Let's explore what makes up these necessary parts.

The backing plate is typically made from a sturdy steel alloy, providing the structural support needed for the brake shoes to function under pressure. On the other hand, the friction material is a blend of different substances designed to create the perfect balance between durability and friction-coefficient.

Here's a breakdown of the typical composition of brake shoe materials:

Component Function
Steel Alloy Provides structural support to the brake shoe.
Friction Material Creates necessary friction for braking.
Bonding Adhesive Secures friction material to the backing plate.
Rivets (optional) Alternative method to bond materials together.
Graphite Reduces noise and improves durability.

In your brake shoes, every material plays its part to make sure you've got reliable stopping power. While the steel gives it strength and shape, the friction materials are tailored to provide the grip needed to bring your vehicle to a halt, without delving into the role of friction just yet.

The Role of Friction

Friction, the force that slows down your vehicle, plays an important role in how brake shoes work. When you press the brake pedal, you're basically commanding your brake shoes to press against the drum, creating friction. This friction is what brings your car to a stop. It's a simple yet profound process that keeps you safe on the road every day.

To truly appreciate the role of friction in the braking process, consider these points:

  1. Safety: Without friction, your vehicle wouldn't stop, putting your life and others at risk.
  2. Control: Friction allows you to control the speed of your vehicle, especially important during sharp turns or on slippery roads.
  3. Precision: The right amount of friction ensures that your vehicle stops when you want it to, not a moment later.
  4. Peace of Mind: Knowing that your brake shoes will create enough friction to stop your car gives you the confidence to drive, whether it's to the grocery store or across the country.

Comprehending the role of friction isn't just about knowing how your car works—it's about appreciating the unseen forces that keep you safe.

Maintenance and Replacement

scheduled maintenance and repairs

To make sure your vehicle remains safe and effective on the road, it's crucial to regularly check and, when necessary, replace your brake shoes. These components bear the brunt of your vehicle's braking force, gradually wearing down over time. You might wonder, 'How do I know when it's time?' Well, a telltale sign is a decrease in braking efficiency or a squealing noise when you brake. This noise is your brake shoes begging for attention, indicating they're worn thin.

You shouldn't wait for these signs to become severe. Incorporate brake shoe inspection into your routine vehicle maintenance. Mechanics can measure the thickness of the brake shoes and advise if they're nearing their end. It's not just about safety; timely replacement can save you money by preventing more extensive damage to the braking system.

Replacing brake shoes isn't a one-size-fits-all situation. It varies by vehicle type and your driving habits. Rough, frequent braking can wear them out faster than gentle, infrequent stops. Always consult your vehicle's manual or a professional mechanic for the best advice tailored to your specific situation. Keeping on top of maintenance ensures your brakes remain responsive, keeping you and others on the road safe.

Conclusion

In summary, you've seen how important brake shoes are in your vehicle's drum brake system. They press against the drum to slow down your car, thanks to their high-friction materials.

Remember, maintaining and replacing them is key to ensuring your safety on the road. Don't overlook their significance; keep an eye on their condition and act promptly if they show signs of wear.

After all, they play a pivotal role in bringing your vehicle to a halt safely and efficiently.
