By Justin Brake shoes should be installed with the correct orientation of leading and trailing shoes.
This is based on their roles in the braking system to ensure optimal performance and avoid system failures.
Understanding Brake Shoe Orientation
Understanding the correct orientation of brake shoes is essential for ensuring your vehicle's braking system operates effectively. You're dealing with a component that's important for your safety on the road, and getting it wrong could lead to dire consequences.
When you're looking at brake shoes, it's vital to recognize that their installation isn't a one-size-fits-all scenario. Each vehicle might've a different setup, and it's your job to understand the specifics for yours.
To start off, you need to know that brake shoes come in pairs for each wheel. There's an inner and an outer shoe, and they're not interchangeable. You've got to ensure they're positioned correctly to make contact with the drum. This might seem challenging, but don't worry. Most brake shoes are marked with indications to help guide you.
Identifying Leading Vs. Trailing Shoes
Now that you're familiar with the basic setup of brake shoes, it's important to distinguish between leading and trailing shoes to ensure correct installation.
The leading shoe is the one that's at the front during the forward motion of your vehicle, while the trailing shoe sits at the back. When you press the brake pedal, the leading shoe gets pushed into the drum initially, creating more friction and therefore more braking power because of its position.
You can identify these shoes by looking for a few key features. Often, the leading shoe has a larger lining surface area than the trailing shoe because it's designed to handle more wear from its primary braking role. Some brake systems mark the leading and trailing shoes differently, either with labels or specific color codes. Don't ignore these markers; they're there to help you make sure you're installing the brake shoes correctly.
Steps for Proper Installation
Having identified the leading and trailing brake shoes, it's time to dive into the steps for their proper installation.
Initially, you'll need to safely lift and support your vehicle, making sure you have ample space to work. Remove the wheel to expose the brake assembly. If you're working on drum brakes, take off the drum to access the shoes.
Before you start, it's a good idea to take a photo or note the current setup for reference. You'll then remove the old brake shoes, beginning with the springs and adjuster, making sure you keep track of where each part goes.
Next, compare the old brake shoes with the new ones to confirm you've got the correct parts. Then, install the new brake shoes by attaching the new or cleaned adjuster and springs. The leading shoe typically faces the front of the vehicle, while the trailing shoe faces the rear. Ensure each shoe is seated correctly in the brake assembly.
Once everything is in place, reattach the drum, wheel, and lower your vehicle. Don't forget to pump the brake pedal a few times to adjust the brake shoes before taking a test drive. This step ensures your brakes are correctly set and ready for use.
Common Mistakes to Avoid
While the proper installation of brake shoes is straightforward, it's easy to make mistakes that can compromise your vehicle's safety. Avoiding these common errors is vital for ensuring your brakes function correctly and keep you safe on the road.
Here's a quick rundown of what to watch out for:
- Installing the Shoes Backwards: Brake shoes are designed to fit in a specific direction. Putting them on backwards will greatly reduce your braking efficiency and can damage your brake system.
- Not Cleaning the Brake Assembly: Before installing new brake shoes, it's crucial to clean the brake assembly thoroughly. Failure to do so can lead to brake noise and premature wear of your new shoes.

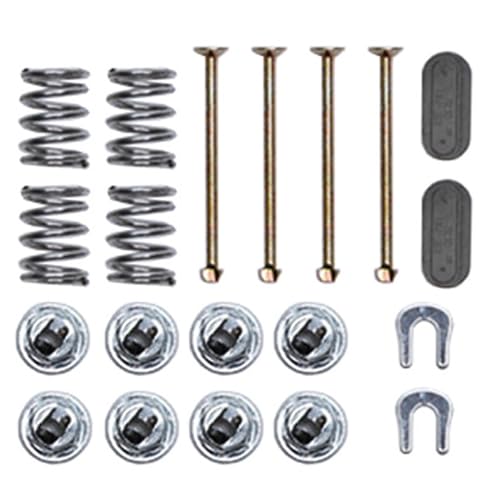

- Ignoring the Hardware: The springs and clips that hold your brake shoes in place can wear out or corrode. Reusing old hardware is a mistake; always replace these components to ensure the best brake performance.
- Overlooking the Adjustment: After installing new brake shoes, they need to be properly adjusted. Skipping this step can result in a long brake pedal travel or uneven braking, both of which can be dangerous.
Avoid these pitfalls to ensure your brake shoe installation enhances your vehicle's safety and performance.
Tips for Successful Replacement
To guarantee your brake shoe replacement improves your vehicle's safety, follow these important tips. First, make sure you've got the right tools for the job. You'll need a brake spring tool, a set of pliers, and a jack with stands to lift and support your vehicle safely. Don't skimp on quality; using the correct equipment can make or break your replacement process.
Before diving in, familiarize yourself with your vehicle's brake assembly. Each model may have a slightly different setup, so consult your vehicle's manual or look up a guide specific to your model. This step prevents confusion and mistakes during the process.
Always work in a clean area to avoid contaminating the new brake shoes with dirt or grease. A clean workspace helps keep track of all the parts and tools.
As you remove the old brake shoes, take note of their arrangement. Taking pictures can help you remember how each part fits back together. This visual aid is invaluable, especially if you're interrupted or need to pause your work.
Lastly, don't rush the job. Replacing brake shoes requires attention to detail and precision. Hurrying can lead to mistakes, compromising your vehicle's safety. Take your time, and you'll ensure a smooth and successful replacement.
Conclusion
So, you've made it through comprehending brake shoe orientation, distinguishing between leading and trailing shoes, and steering the installation steps.
Remember, avoiding common mistakes and following our tips can make your brake shoe replacement much smoother. Don't forget, getting the orientation right is vital for your safety and your vehicle's performance.
Take your time, double-check your work, and you'll be on your way to a successful replacement. Drive safe!
