Hyundai 1.6 Turbo Engine Problems: An In-Depth Guide

Searching for Hyundai 1.6 Turbo Engine problems? You are at the right place.

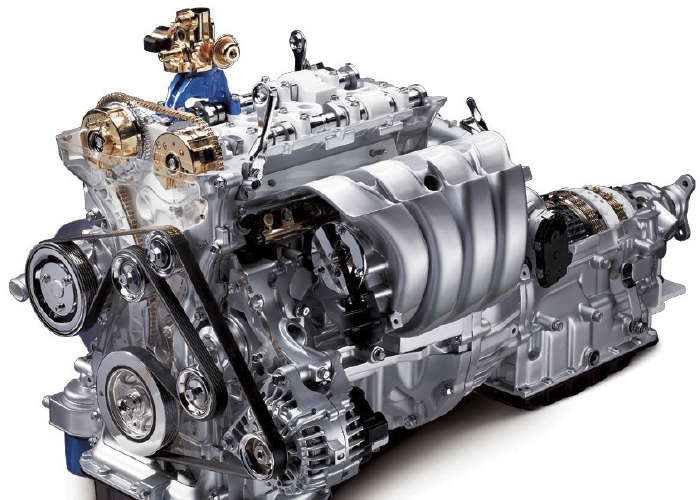

The Hyundai 1.6 Turbo engine, a member of the Gamma engine family, has been a staple in various Hyundai and Kia models since its introduction. Known for its balance of power and efficiency, this engine has seen several iterations and improvements over the years. However, like any mechanical component, it is not immune to issues.

This in-depth guide explores the common problems associated with the Hyundai 1.6 Turbo engine, from carbon buildup and oil leaks to turbocharger and catalytic converter issues.

What Are Common Problems with Hyundai 1.6 Turbo Engine?

Common problems with the Hyundai 1.6 Turbo engine, also known as the 1.6 Gamma engine, include:

1. Carbon Buildup: Particularly affects the Gasoline Direct Injection (GDI) variants of the engine. Carbon buildup on the intake valves is a common issue due to the nature of GDI engines. Installing an oil catch can and using intake sprays and cleaners can help mitigate this issue, but walnut blasting or cleaning the valves is recommended every 120,000 miles.
2. Oil Leaks: The turbo oil feed line on the turbocharged variant of the Gamma engine can develop leaks. Additionally, oil leaks can occur as a result of age and wear and tear, which is common in all cars and engines as they age.
3. Purge Control Valve/Solenoid: This component can fail but is generally considered a cheap and easy fix.
4. Catalytic Converter: Failure of the catalytic converter can occur, which can be an expensive repair, but it is relatively uncommon.
5. Engine Noises and Vibrations: The 1.6 Gamma engine may exhibit noises, whistles, knocks, and periodic problems with idle and vibrations.
6. Oil Leakage Under Cylinder Head: This can start as early as 30-40k mileage and would require a new gasket.
7. Dirty Intake Manifold: This can cause unstable idling and power loss, requiring special cleaning products and procedures.
8. Turbocharger Oil Leakage: This is rare but can occur at very low mileage on the 1.6 T-GDI engine.

Despite these issues, the Hyundai 1.6 Turbo engine is generally considered reliable with proper maintenance and the use of good quality fuel and lubricants. The engine life expectancy is slightly over 125-150k miles (200,000-250,000 km) with proper care.

Symptoms of Hyundai 1.6 Turbo Engine Problems

Symptoms of Hyundai 1.6 Turbo engine problems can include:

1. Metallic Knocking Noise: A symptom of damage within the engine, such as wear of the connecting rod bearings, which can lead to engine seizure and even fires.
2. Loss of Power: This can be caused by leaks around the gaskets, cracks in the manifold, or damage to the turbine’s compressor wheel.
3. Poor Acceleration and Low Boost Levels: If the fins of the compressor wheel are damaged, it can result in poor acceleration and low boost levels, as well as noise.
4. Oil Leaks: The turbo oil feed line on the turbocharged variant of the Gamma engine can develop leaks, and oil leakage under the cylinder head may start as early as 30-40k mileage.
5. Carbon Buildup: This affects the GDI variants of the engine and can lead to restricted airflow into the cylinders, resulting in power loss, misfires, and rough idle.
6. Catalytic Converter Failure: Although relatively uncommon, failure of the catalytic converter can occur and can be an expensive repair.
7. Engine Noises and Vibrations: Noises, whistles, knocks, and periodic problems with idle and vibrations can be indicative of engine issues.
8. Dirty Intake Manifold: This can cause unstable idling and power loss, requiring special cleaning products and procedures.
9. Turbocharger Oil Leakage: Rare but can occur at very low mileage on the 1.6 T-GDi engine.

These symptoms can vary based on the specific variant and year of the Hyundai 1.6 Turbo engine, and not all issues may affect every engine. It's important to address these symptoms promptly to avoid further damage and potential safety risks.

Causes of Hyundai 1.6 Turbo Engine Problems

The Hyundai 1.6 Turbo engine, part of the Gamma engine family, has been known for its efficiency and performance. However, like any complex machinery, it is not without its issues. The causes of problems in the Hyundai 1.6 Turbo engine can be broadly categorized into external factors and internal mechanism failures.

External Factors

Oil Quality and Maintenance: The quality of oil and the frequency of oil changes are crucial for the health of the turbocharged engine. Since 2011, Hyundai has specified the use of ILSAC GF-4 oil with an API SM rating, with upgrades to ILACS GF-5 oils and API SN and SN-Plus oils recommended to extend the life of the turbocharger, timing chain, and high-pressure fuel pump. Hyundai recommends changing the oil and filter between 3,000 to 5,000 miles, depending on vehicle usage. Failure to adhere to these guidelines can lead to oil forming deposits in the turbocharger’s housing, causing restrictions in the oil passages and the turbocharger to run hotter.

Wastegate Operation: The wastegate manages the flow of exhaust gases over the turbine. If the boost reaches a specific level, the gate opens and exhaust gases bypass the turbine. The first-generation Gamma 1.6 turbocharged engine uses a pressure-actuated wastegate, which is controlled by a solenoid that receives a pulse-width modulated signal. Incorrect adjustment or failure of this system can lead to loss of power and other performance issues.

Internal Mechanism Failures

Carbon Buildup: This primarily affects the Gasoline Direct Injection (GDI) variants of the engine. Carbon buildup on the intake valves is a common issue due to the nature of GDI engines, where fuel is sprayed directly into the cylinders, bypassing the intake valves and not cleaning off any deposits. This can lead to restricted airflow, power loss, misfires, and rough idle.

Turbocharger Issues: Leaks around the gaskets and cracks in the manifold can lead to a loss of power. Damage to the turbine’s compressor wheel, either from ingesting debris or from shaft bearings inside the turbo having enough endplay to cause the turbine to make contact with the housing, can cause poor acceleration, low boost levels, and noise.

Oil Leaks: The turbo oil feed line on the turbocharged variant of the Gamma engine can develop leaks. Additionally, oil leakage under the cylinder head may start as early as 30-40k mileage, requiring a new gasket.

Catalytic Converter Failure: Although relatively uncommon, failure of the catalytic converter can occur, which can be an expensive repair.

Purge Control Valve/Solenoid Failure: This component can fail but is generally considered a cheap and easy fix.

The Hyundai 1.6 Turbo engine's problems can stem from both external factors, such as maintenance practices and oil quality, and internal mechanism failures, including carbon buildup, turbocharger issues, oil leaks, catalytic converter failure, and purge control valve/solenoid failure. Proper maintenance and adherence to Hyundai's guidelines can mitigate many of these issues, but some internal mechanism failures may require professional diagnosis and repair.

How to Diagnose Hyundai 1.6 Turbo Engine Problems

To diagnose Hyundai 1.6 Turbo engine problems, you can follow these DIY tips for identifying engine issues and understand when it’s time to seek professional diagnostics.

DIY Tips for Identifying Engine Problems

1. Listen for Unusual Noises: Pay attention to any knocking, hissing, or popping sounds that could indicate internal engine issues or problems with the turbocharger.
2. Check for Oil Consumption: Monitor the engine’s oil level regularly. If the engine is burning oil excessively, it could be a sign of internal wear or damage.
3. Inspect for Oil Leaks: Look for any signs of oil leaks, particularly around the turbo oil feed line, which is a common issue with the turbocharged variant of the Gamma engine.
4. Observe Performance Issues: Loss of power, poor acceleration, and low boost levels can be symptomatic of turbocharger problems, such as damaged compressor wheel fins or leaks around gaskets and cracks in the manifold.
5. Check Engine Light: If the check engine light is on, use an OBD-II scanner to retrieve any stored trouble codes. These codes can provide clues about the nature of the problem.
6. Monitor for Rough Idling: A rough idle can be caused by outdated spark plugs or other issues such as a low battery or improper octane in the gasoline.
7. Notice Fuel Efficiency Changes: A decrease in fuel efficiency could indicate a problem with the engine’s compression stroke, which may require professional attention.
8. Visual Inspection: Visually inspect the engine for any obvious signs of damage or wear, including the condition of the turbocharger and related components.

When to Seek Professional Diagnostics

• Complex Engine Codes: If the OBD-II scanner retrieves codes that are beyond your understanding or indicate serious engine problems, it’s best to seek professional help.
• Persistent Issues: If you’ve tried the basic checks and the problem persists, or if you’re unable to identify the cause of the issue, a professional mechanic can perform a more thorough diagnosis.
• Engine Knocking: A metallic knocking noise can be a sign of severe internal damage, such as worn connecting rod bearings, which requires immediate professional attention.
• Turbocharger Problems: Diagnosing turbocharger issues can be complex and may require specialized knowledge and tools. If you suspect a turbocharger issue, a professional should inspect it.
• Safety Concerns: If you’re not confident in your ability to diagnose or repair the issue safely, it’s always better to consult with a professional to avoid causing further damage or risking personal injury.

While there are several steps you can take to diagnose issues with the Hyundai 1.6 Turbo engine, certain problems will require the expertise and equipment of a professional mechanic. If you encounter complex trouble codes, persistent issues, or signs of serious internal damage, it's important to seek professional diagnostics to ensure accurate repairs and maintain the safety and reliability of your vehicle.

Solutions and Fixes for Hyundai 1.6 Turbo Engine Problems

To address common problems with the Hyundai 1.6 Turbo engine, here is a step-by-step guide based on the provided sources:

Carbon Buildup

Preventive Measures:

• Install an oil catch can to reduce oil blow-by and carbon buildup.
• Use intake valve cleaners and sprays regularly to help dissolve carbon deposits.

Valve Cleaning:

• Schedule a walnut blasting service or manual cleaning of the intake valves every 120,000 miles to remove carbon buildup.

Oil Leaks

Valve Cover Gasket:

• Inspect the valve cover gasket, especially in older models, for signs of wear and replace if necessary.

Turbo Oil Feed Line:

• Check the turbo oil feed line for leaks, particularly in older or high-mileage vehicles.
• Replace the oil feed line if leaks are found. This is a relatively simple DIY repair with the part costing around $50 to $75, or a $300 repair at a shop.

Purge Control Solenoid

Replacement:

• If the purge control solenoid fails, replace it with a new one. This is considered a cheap and easy DIY fix.

Catalytic Converter Failure

Inspection and Replacement:

• If experiencing loss of power or unusual noises, have the catalytic converter inspected.
• Replace the catalytic converter if it has failed. This repair is typically done by professionals due to the cost and need for proper disposal of the old unit.

Turbocharger Issues

Inspection:

• Inspect the turbocharger for any signs of damage, such as cracks in the manifold or damage to the compressor wheel.
• Listen for unusual noises that may indicate turbocharger problems.

Repair or Replacement:

• If the turbocharger is damaged, it may need to be repaired or replaced. This is a complex repair that should be performed by a professional.

Under boost Issues

Visual Inspection:

• Check all hoses and connections from the turbocharger to the intercooler for leaks or damage.

Intercooler Inspection:

• Inspect the intercooler for leaks, as a damaged intercooler can cause under boost and loss of power.
• Replace the intercooler if it is found to be leaking or damaged.

Oil Dilution in Hybrid Engines

Oil Level Monitoring:

• Regularly check the oil level for signs of dilution, such as rising oil levels.
• If oil dilution is suspected, seek professional diagnostics and repair.

Engine Failure

Professional Assessment:

• If experiencing engine failure, have the vehicle assessed by a dealer or qualified mechanic.
• Engine replacement may be necessary, and in some cases, may be covered under warranty.

Wastegate Operation

Adjustment:

• Check the wastegate actuator rod for proper alignment and adjust if necessary.
• If the wastegate solenoid valve is faulty, replace it with a new one.

General Maintenance

Oil Changes:

• Follow Hyundai’s recommendation for oil and filter changes every 3,000 to 5,000 miles, depending on vehicle usage.
• Use the specified ILSAC GF-4 oil with an API SM rating or the upgraded ILACS GF-5 oils and API SN and SN-Plus oils.

Spark Plugs:

• Check and re-gap the spark plugs to the correct specification for optimal engine performance.

By following these steps, you can address the common issues associated with the Hyundai 1.6 Turbo engine. For complex repairs or if you're unsure about performing a repair, it's always best to seek professional assistance to ensure the job is done correctly and safely.

Preventative Measures to Avoid Hyundai 1.6 Turbo Engine Problems

Preventative measures to avoid Hyundai 1.6 Turbo engine problems largely revolve around adhering to a strict maintenance schedule and being proactive about the care of the engine. Here are some routine maintenance and care tips based on the provided sources:

Routine Maintenance and Care Tips

1. Regular Oil Changes: Follow Hyundai’s recommendation for oil and filter changes every 3,000 to 5,000 miles, depending on vehicle usage, to prevent sludge buildup and ensure proper lubrication of engine components.
2. Use High-Quality Fuels and Lubricants: Always use high-quality fuels and lubricants that meet Hyundai’s specifications to prevent severe engine and transaxle damage.
3. Inspect and Clean Intake Valves: For GDI engines, use intake valve cleaners and sprays regularly to help dissolve carbon deposits. Consider installing an oil catch can to minimize oil blow-by and subsequent carbon buildup.
4. Regular Engine Check-Ups: Inspect the engine regularly for signs of wear, leaks, or damage. Pay attention to the turbocharger’s condition and ensure there are no leaks around gaskets or cracks in the manifold.
5. Monitor Oil Consumption: Keep an eye on oil levels and address any oil consumption issues promptly to prevent engine damage.
6. Turbocharger Care: Allow the turbocharger to cool down after heavy use by idling the engine before shutting it off. This prevents oil coking within the turbocharger’s oil supply lines.
7. Adhere to Service Intervals: Service your vehicle at the intervals recommended by Hyundai, which typically include oil and filter changes, tire rotations, and various inspections.
8. Use Fuel Additives: If TOP TIER Detergent Gasoline is not available, add a fuel additive as recommended in the owner’s manual to keep the fuel system clean.
9. Check for Software Updates: Ensure that your vehicle’s software is up to date, as updates can address and prevent potential engine issues.
10. Address Recalls Promptly: Stay informed about any recalls or technical service bulletins related to your vehicle and have them addressed as soon as possible.
11. Seek Professional Advice: If you’re unsure about any aspect of your vehicle’s maintenance or encounter any issues, consult with a professional mechanic or an authorized Hyundai dealer.

By following these preventative measures and routine maintenance tips, you can significantly reduce the risk of major engine problems and extend the life of your Hyundai 1.6 Turbo engine.

What to Do If Your Hyundai 1.6 Turbo Engine Fails

If your Hyundai 1.6 Turbo engine fails, here are the immediate steps you should take, along with an understanding of your warranty and Hyundai’s support system:

Immediate Steps to Take in Case of Engine Failure

1. Safety First: If you notice any signs of engine failure while driving, such as loss of power, unusual noises, or warning lights illuminating, safely pull over to the side of the road as soon as possible.
2. Turn Off the Engine: Once safely parked, turn off the engine to prevent further damage. Avoid attempting to restart the engine if you suspect a serious issue.
3. Contact Hyundai Roadside Assistance: If your vehicle is still under the Hyundai Roadside Assistance coverage, call them for towing services to the nearest Hyundai dealership or authorized service center.
4. Document the Issue: Take note of any symptoms or warning lights and the circumstances leading up to the engine failure. This information will be helpful for the diagnostic process.

Understanding Your Warranty and Hyundai’s Support System

Check Your Warranty Status: Hyundai offers a 10-Year / 100,000-Mile Powertrain Limited Warranty for original owners of 2004 model year and newer vehicles. Second and/or subsequent owners have powertrain components coverage under the 5-Year/60,000-Mile New Vehicle Limited Warranty. For specific models affected by known issues, Hyundai has extended the warranty for both original and subsequent owners for certain engine repairs, subject to other eligibility requirements.

Extended Warranty for Specific Issues: Hyundai has extended the Powertrain Limited Warranty for certain engine repairs and/or replacement where the engine damage or malfunction is caused by connecting rod bearing failure, to 15 years or 150,000 miles from the date of original retail delivery or date of first use, whichever occurs first. This extended warranty is valid for original and subsequent owners of specific models and model years.

Service Campaigns and Recalls: Hyundai has initiated service campaigns and recalls for certain models to address engine issues. For example, the installation of the Knock Sensor Detection System (KSDS) is a preventative measure for eligible vehicles. Check if your vehicle is eligible for such campaigns or recalls by entering your VIN on Hyundai’s official website.

Seek Professional Diagnosis: Schedule an appointment with a Hyundai dealership or authorized service center for a professional diagnosis. Hyundai dealerships are equipped to handle warranty repairs and will determine if the issue is covered under warranty.

Rental Reimbursement: If your vehicle is part of a recall or class action settlement, Hyundai may provide a service loaner vehicle or reimbursement for a rental car while your vehicle is being repaired.

Keep Maintenance Records: Regular maintenance is essential for vehicle performance and reliability. Hyundai encourages owners to retain maintenance records as they may be required for warranty service.

If you experience engine failure with your Hyundai 1.6 Turbo engine, prioritize safety, document the issue, and contact Hyundai for assistance. Check your warranty status and be aware of any extended warranty coverage or service campaigns that may apply to your vehicle. Always seek professional diagnosis and repairs from authorized Hyundai service centers to ensure your vehicle receives the appropriate care and support.

Wrapping Up

While the Hyundai 1.6 Turbo engine is generally praised for its above-average reliability, it is still subject to a range of issues that can affect its performance and durability. Common problems such as carbon buildup, oil leaks, and turbocharger issues can be mitigated through regular maintenance and early detection.

Understanding the warranty coverage and support system provided by Hyundai can also be invaluable for owners facing engine troubles. With proper care and attention to the signs of potential problems, drivers can ensure their Hyundai 1.6 Turbo engine runs smoothly for years to come.
